Ruckus Networks · Indoor Access Points
R670
Mid-range Wi-Fi 7 tri-band AP, 9.3 Gbps max rate, for busy offices and classrooms
Product information
Overview
Mid-range Wi-Fi 7 tri-band AP, 9.3 Gbps max rate, for busy offices and classrooms
RUCKUS R670 Indoor Access Point Features
The RUCKUS R670 expands Wi-Fi 7 into everyday deployments — guest rooms, classrooms, hotel rooms and lobbies — without compromising on performance.
The RUCKUS R670 is a mid-range, tri-band concurrent indoor AP delivering 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz, or 2x2:2 in 2.4GHz plus 4x4:4 in 5GHz in dual-band mode), reaching a combined data rate of up to 9.34 Gbps.
With Multi-Link Operation (MLO), Preamble Puncturing, 4K QAM modulation and 320 MHz channels, the R670 supports data-intensive 4K/8K video streaming alongside latency-sensitive voice and data traffic with stringent quality-of-service requirements.

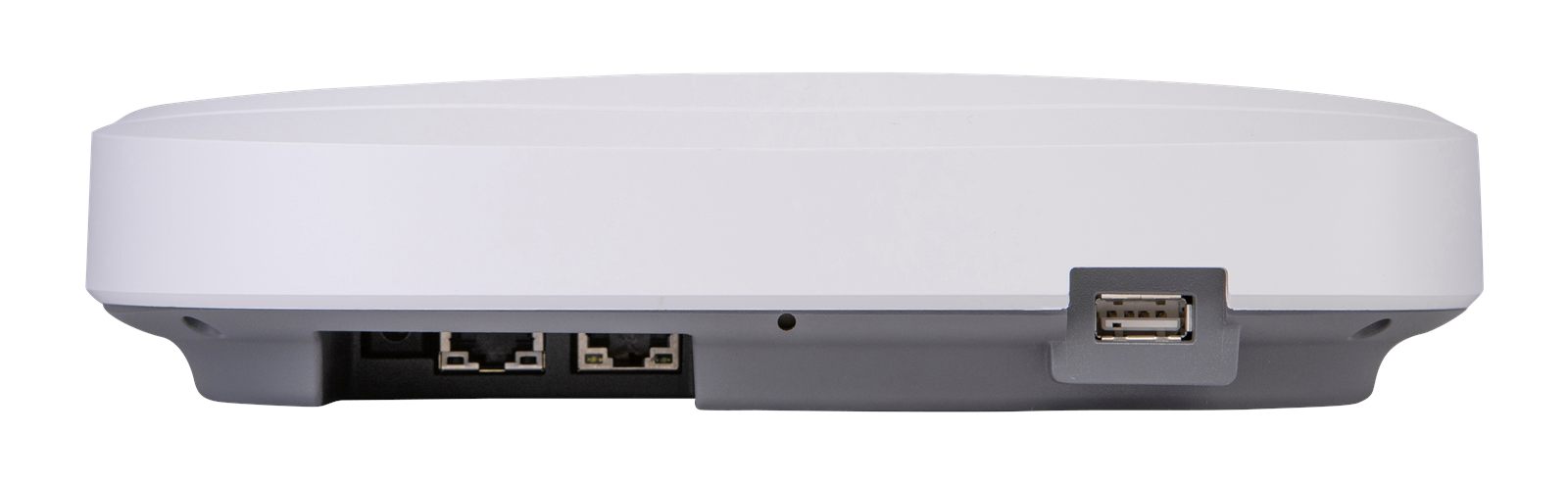

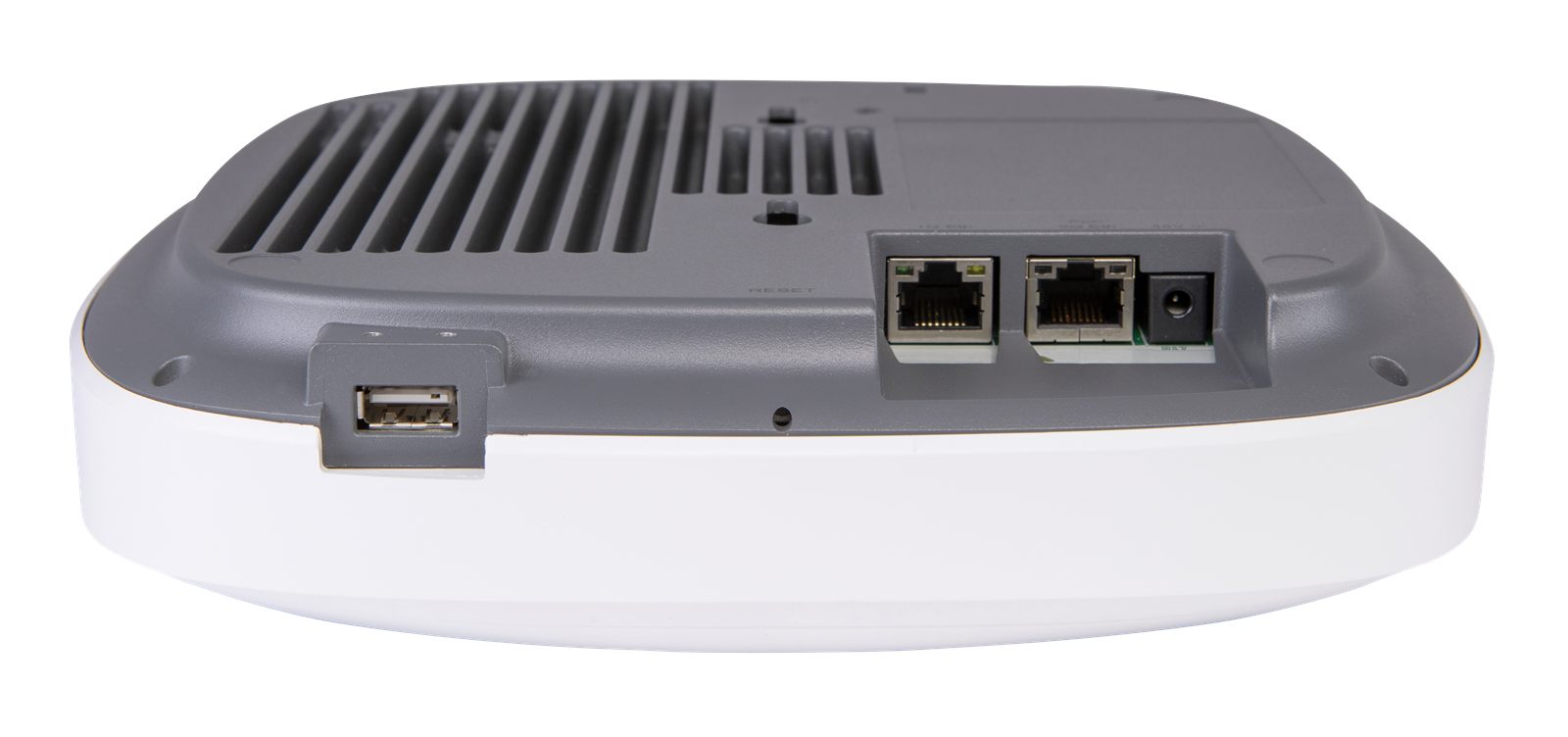

A 5 Gbps Ethernet port eliminates wired backhaul as a bottleneck, and an onboard BLE/Zigbee IoT radio plus USB port let the R670 integrate new wireless technologies as they emerge.
BeamFlex+ adaptive antennas extend coverage and improve throughput, backed by a Limited Lifetime Warranty, making the R670 a dependable mid-tier choice for busy indoor spaces.
